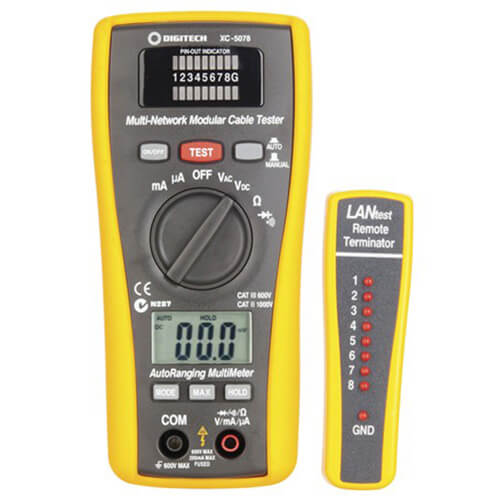

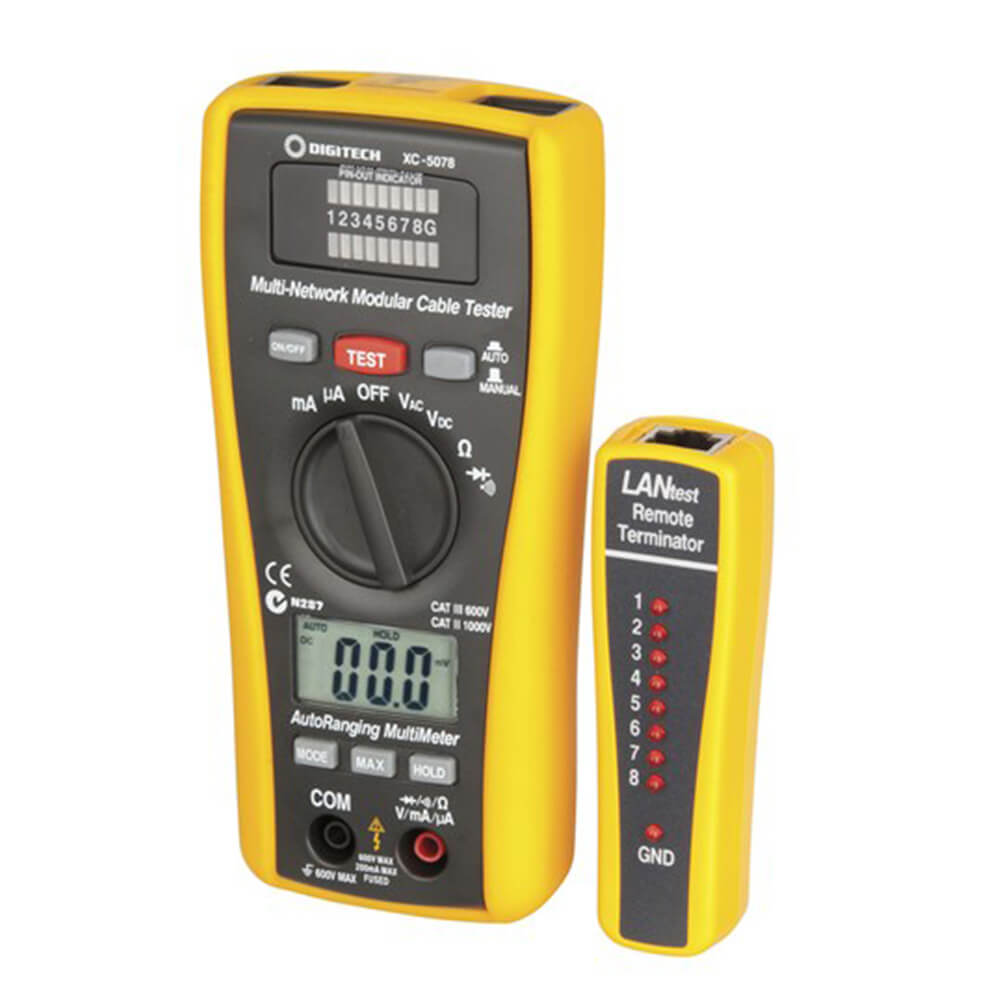

This innovative device is ideal for network installers or technicians and will allow the user to easily check cable integrity or measure AC & DC voltage, current, resistance, and continuity etc. without needing to carry two separate devices. The unit will check for cable continuity, open-circuits, short-circuits, and cross-connects etc. A remote terminator is included and enables the user to check network cables at a wall jack or patch panel. Supplied with loop back cable, LAN terminator, and multimeter leads.
LAN tester specifications:
- LAN tester checks faults & miss wired conductors
- Manual or automatic testing
Product Specifications
- Continuity buzzer : true
- AC Current Ranges : 2.0mA, 20.0mA, 200.0A
- AC Current Accuracy : 2.0%
- DC Current Ranges : 2.0mA, 20.0mA, 200.0mA
- DC Current Accuracy : 1.5%
- Resistance Ranges : 200.0Ohm, 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm
- Resistance Accuracy : 0.8%
- Measures in Celcius : false
- Measures in Fahrenheit : false
- Measures in Kelvin : false
- AC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 600.0V
- AC Voltage Accuracy : 1.2%
- DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 600.0V
- DC Voltage Accuracy : 0.5%
- Records Minimum : false
- Records Maximum : true
- Data Hold : true
- Relative Measure : false
- Display Type : LCD
- DMM Control from PC : false
- Safety Rating Cat : Cat III
- Safety Rating Max Volt : 600.0V
- Count / Maximum Reading : 3.0pc
- True RMS : false
- Autorange : true
- Optical Sensor : false
- Measures duty cycle : false
- Measures dwell : false
- Length : 162.0mm
- Width : 74.5mm
- Depth : 44.0mm
- Probe Type : High Grade Meter Probes
- Connection to meter : Shrouded 4mm Banana Plug
- Meter Input Impedence : 10.0Megaohm
- Input Protection Fuse : 200.0mA
- Measures diode : true
- Length : 25 cm
- Width : 13.2 cm
- Height : 8 cm
