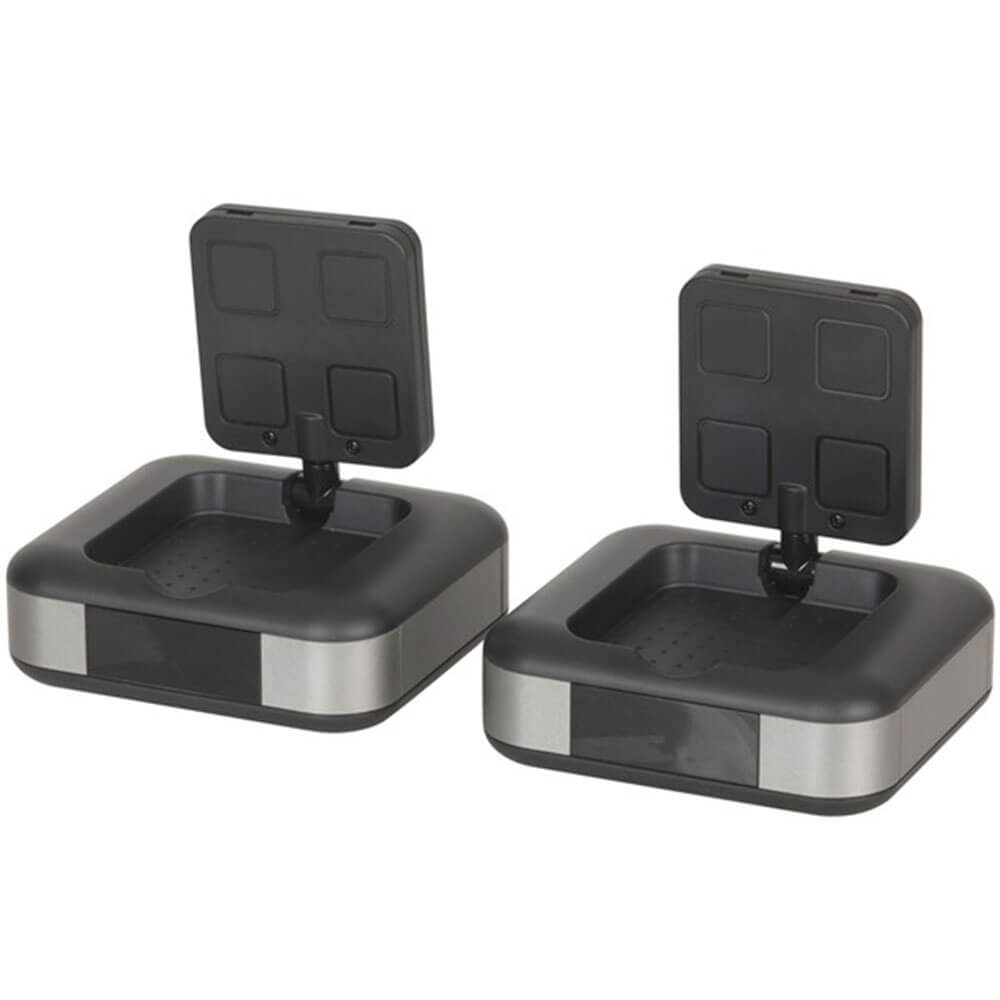

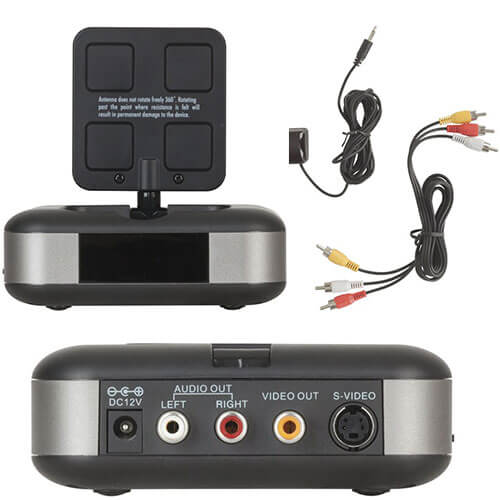

The latest in our range of AV senders. Will allow you to send your pay TV reception (or any other video source) to any part of the house. Includes a wideband IR remote control extender so it will cope with even the fussiest remote controls. 5.8GHz transmission frequency ensures freedom from wireless network interference. Includes power supplies, AV cables and extension IR LED.
Transmitter: • Video: Composite or S-video • Audio: Stereo RCA • Output Level: 13dBm • Operating Frequency: 5790, 5828, 5847, 5866MHz • Effective Range: 60m clear line of sight • Power: 12VDC 250mA
IR Transmitter/Receiver • Operating Frequency: 433.92MHz • IR Carrier Frequency: 38/56kHz Selectable
Product Specifications
- Transmission frequency : 5.8GHz
- Receiver Antenna Style : Flat Panel
- Transmitter Antenna Style : Flat Panel
- DC Voltage : 12.0V
- DC Current Draw : 250.0mA
- Item Connection : Barrel Plug
- Connection Size : 2.5mm
- Suitable PSU Included : true
- Transmission Mode : Digital
- Type of Signal : Composite Video and Audio
- Input Connection : RCA
- Length : 26 cm
- Width : 25.2 cm
- Height : 8 cm
